Applications

In our 25 years of operation, we have developed various different types of Spark Erosion techniques to be able to provide our customers a wide variety of solutions. Below you can find a brief summary with pictures of some of the most frequently demanded applications.

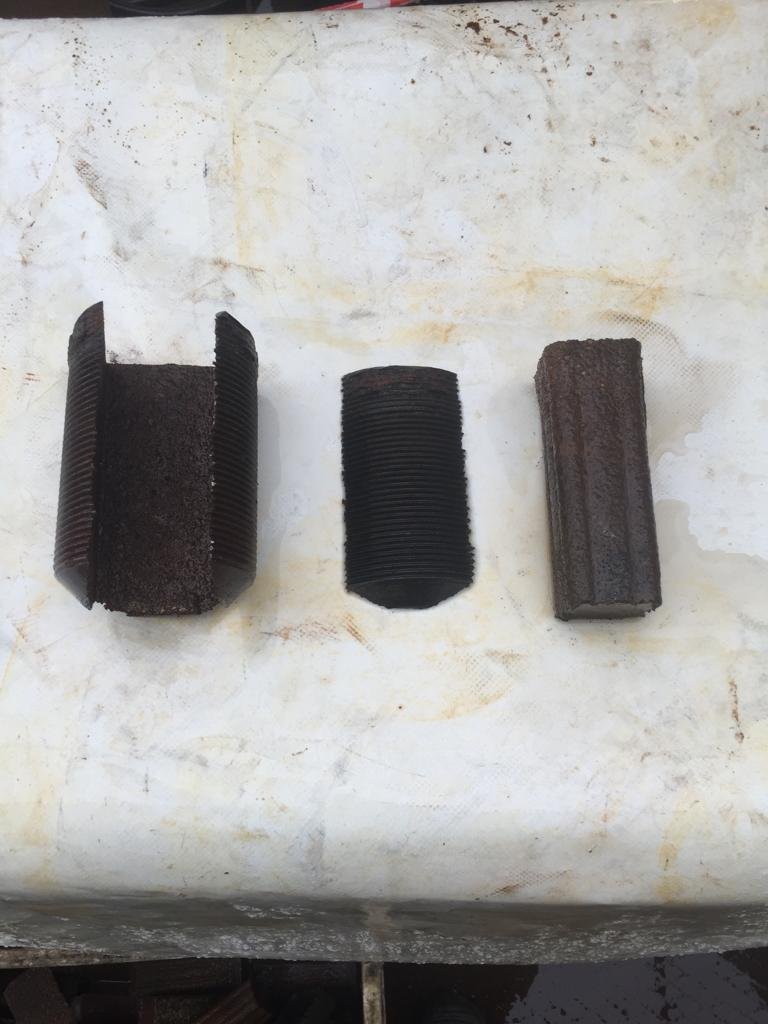

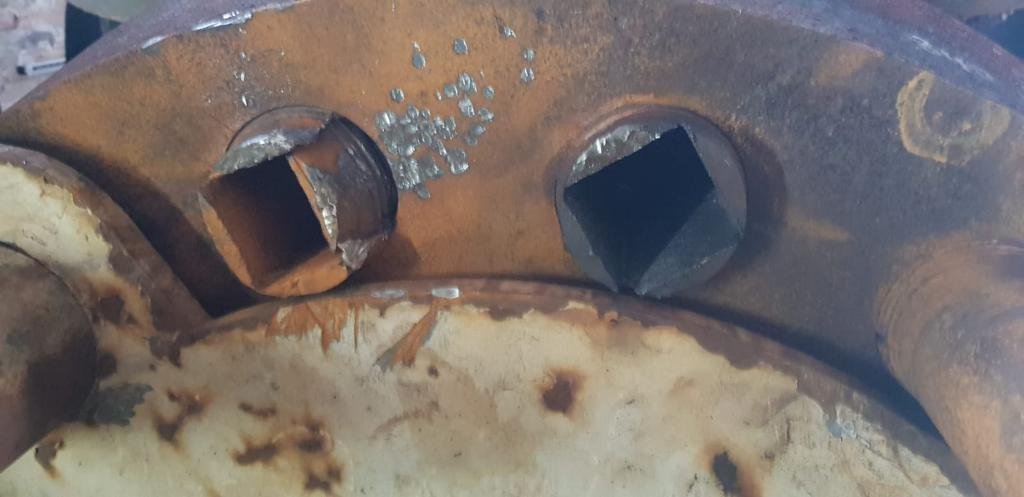

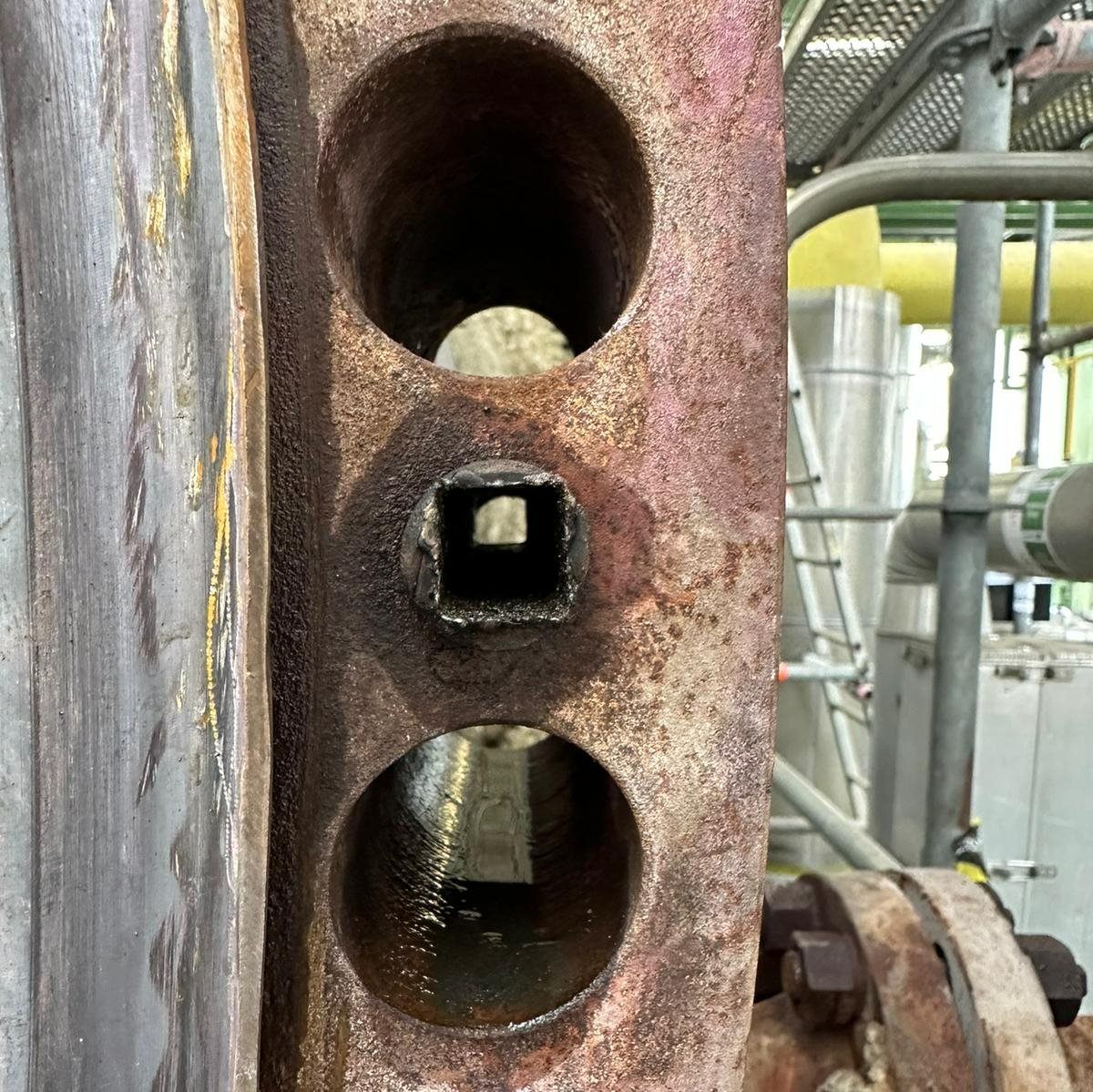

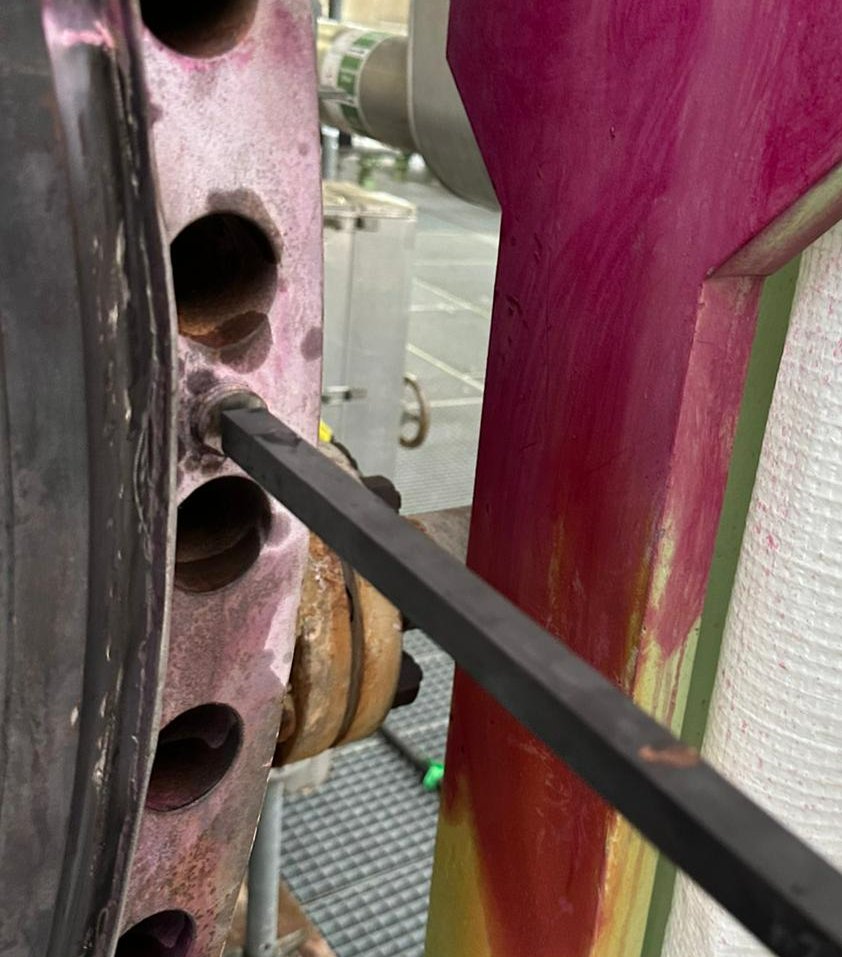

Stud Sqaure Cut

Diameter: 2''1/2' (63mm)

Depth: 120 mm

Duration: 2 hours

PHOTO-2023-02-23-13-57-23

PHOTO-2023-02-23-13-57-30

PHOTO-2022-11-01-18-25-30 2

PHOTO-2022-11-01-18-24-12

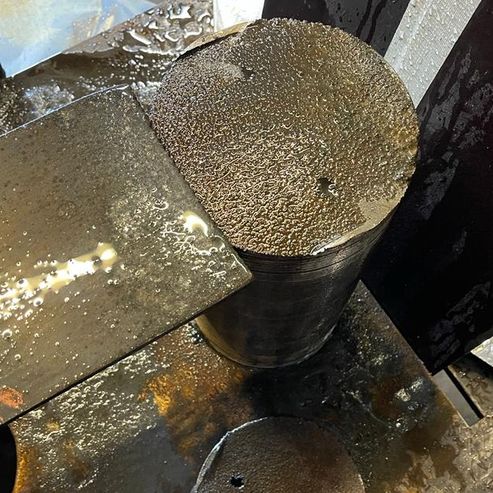

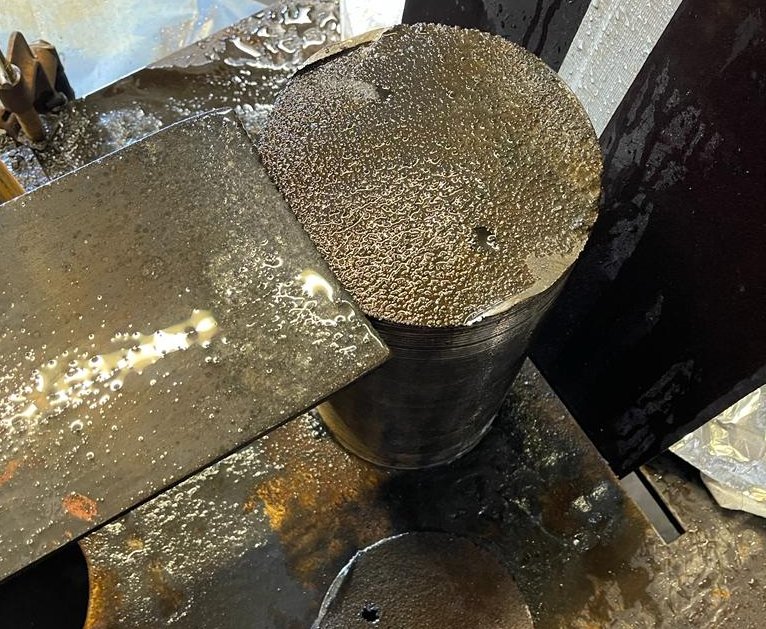

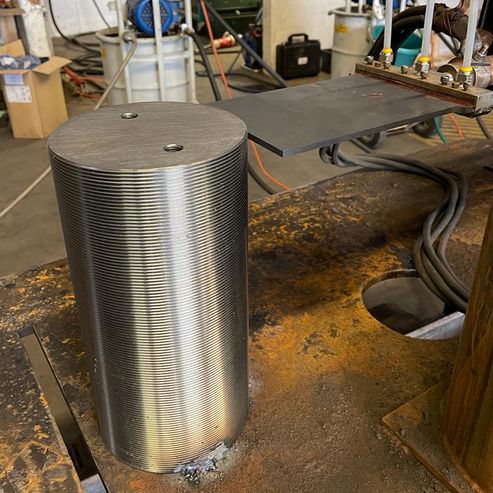

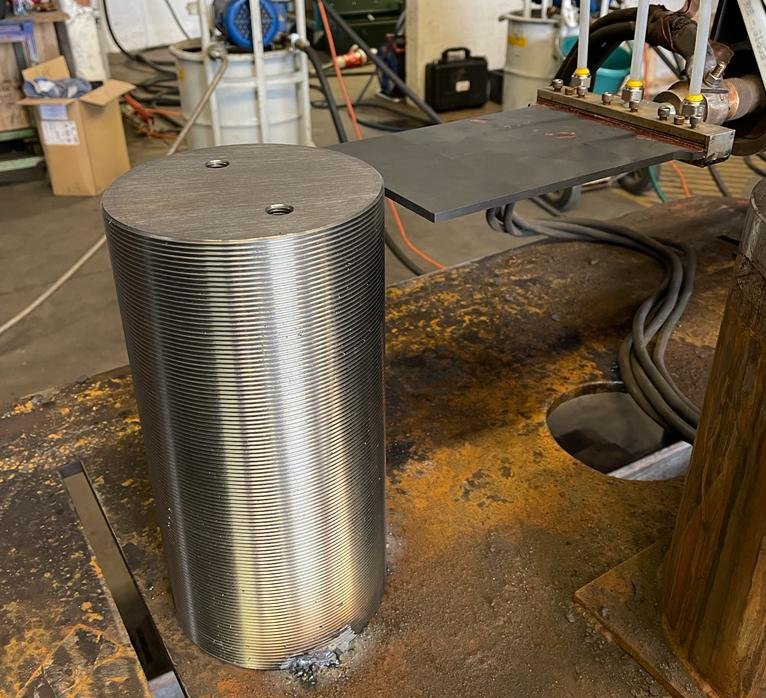

Stud Radial Cut

Diameter: 7" (180mm)

Thread: 8UN

Duration: 1 hour

PHOTO-2022-11-01-18-20-39___serialized1

PHOTO-2022-11-01-18-20-39 2___serialized1

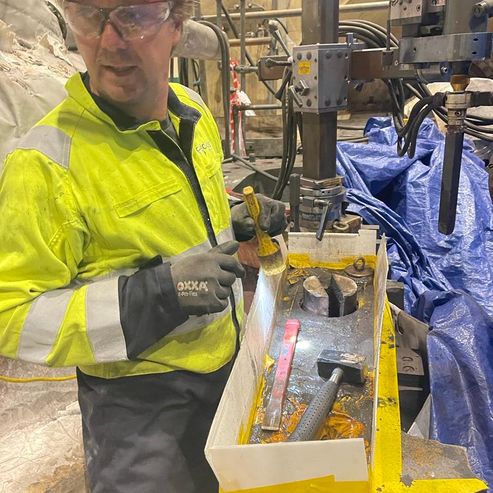

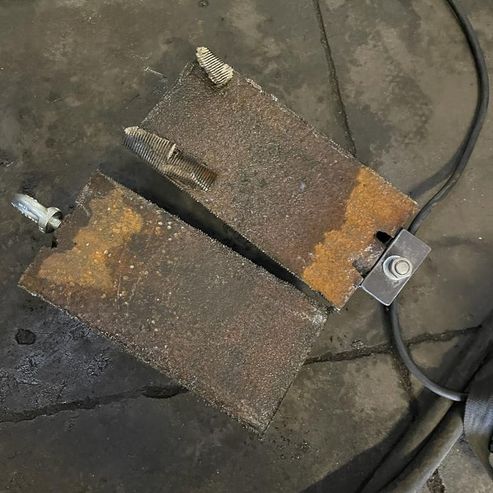

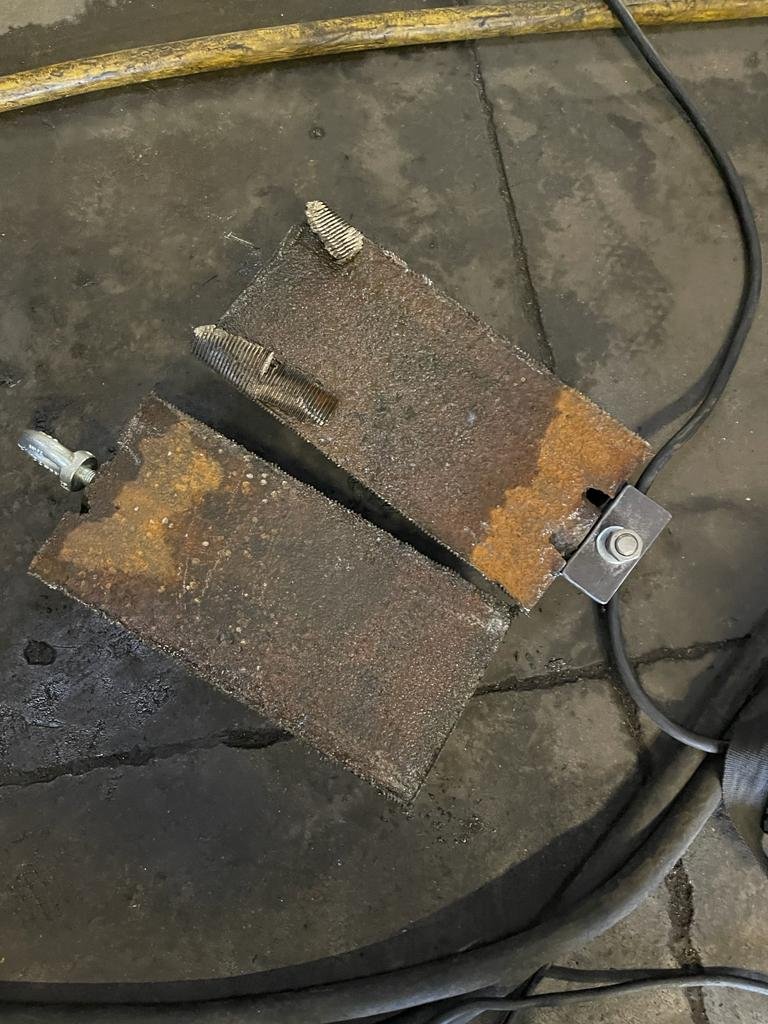

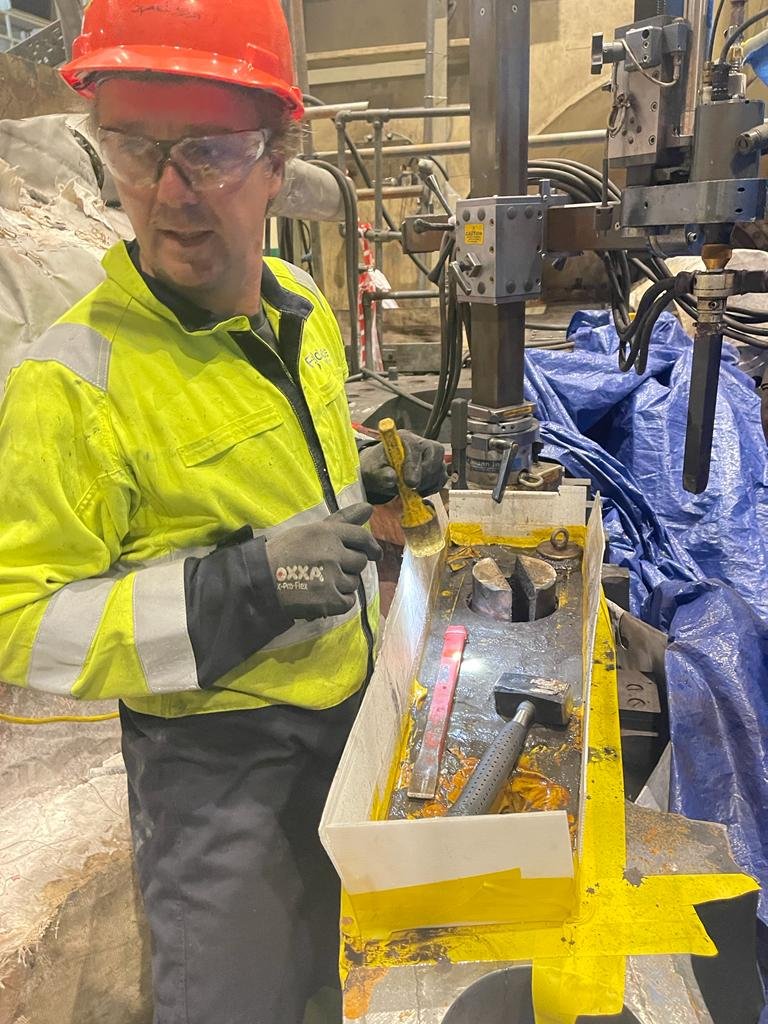

Stud Axial Cut

Diameter: 6" (152mm)

Lenght: 300mm

Thread: 8UN

Duration: 8 hours

PHOTO-2022-11-01-18-21-08

PHOTO-2022-11-01-18-21-08 2

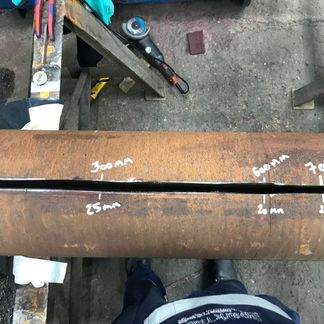

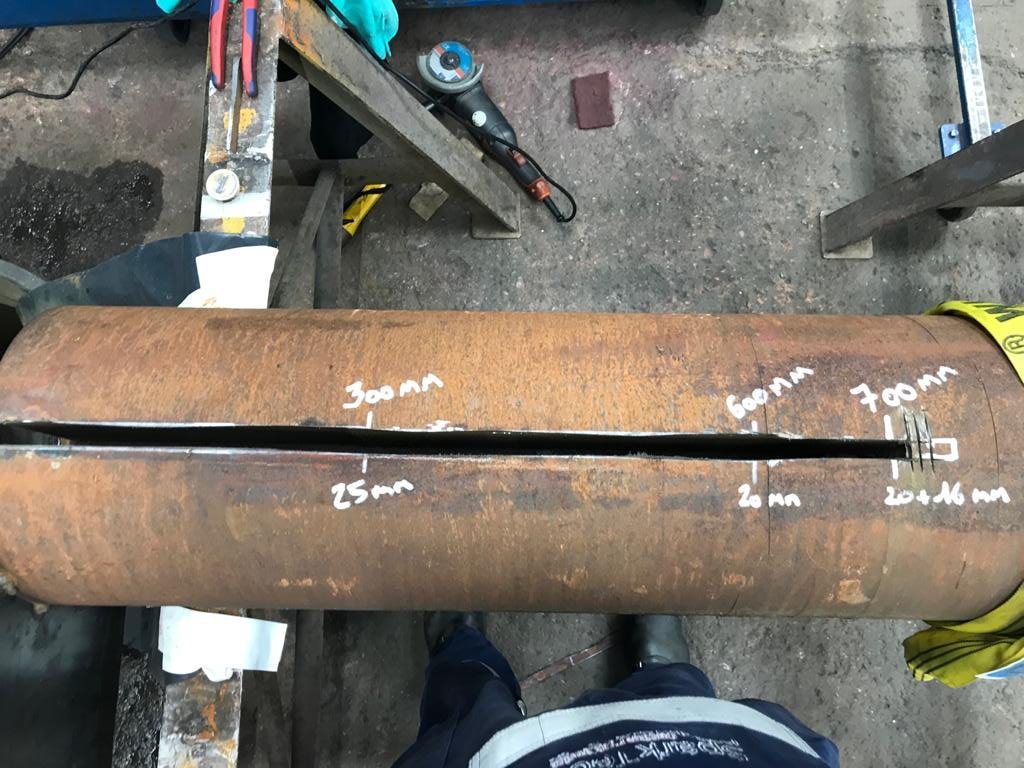

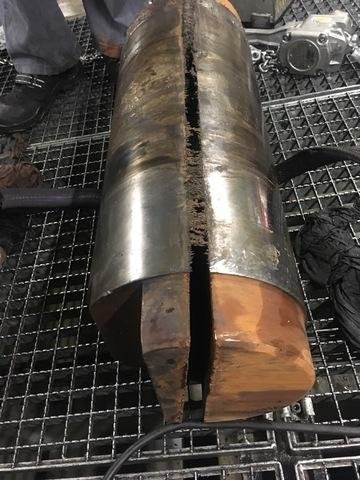

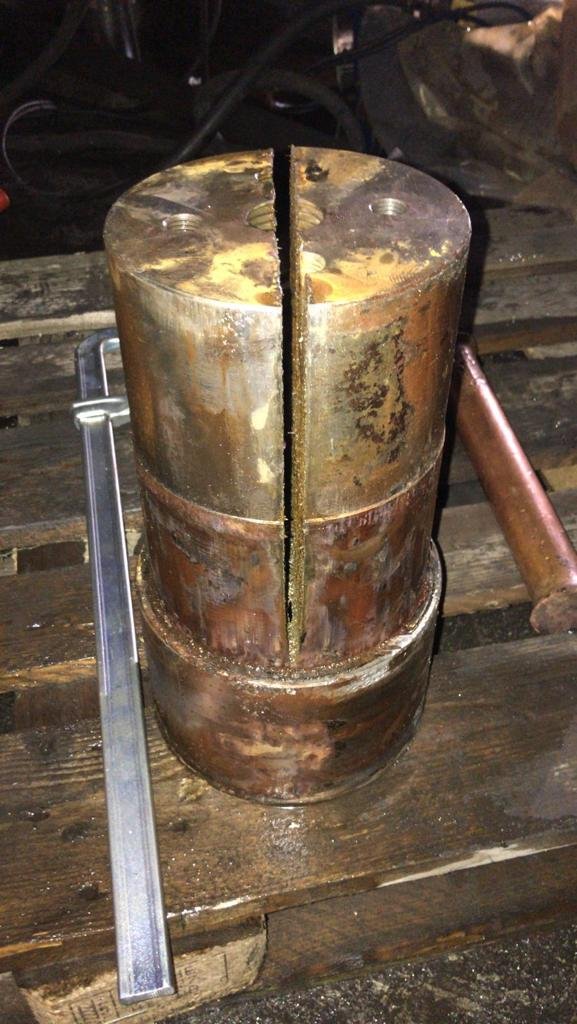

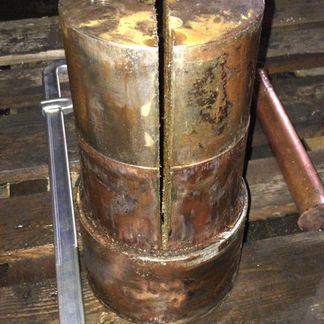

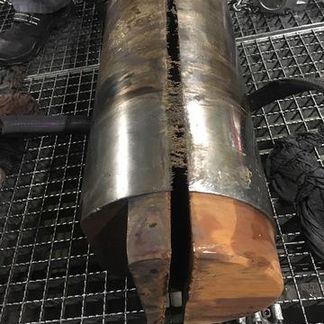

Shaft Axial Cut

Several different examples.

PHOTO-2022-11-01-18-22-34 2___serialized1

PHOTO-2022-11-01-18-22-34

be03e828-d30e-43ac-bde1-f84a485794b7

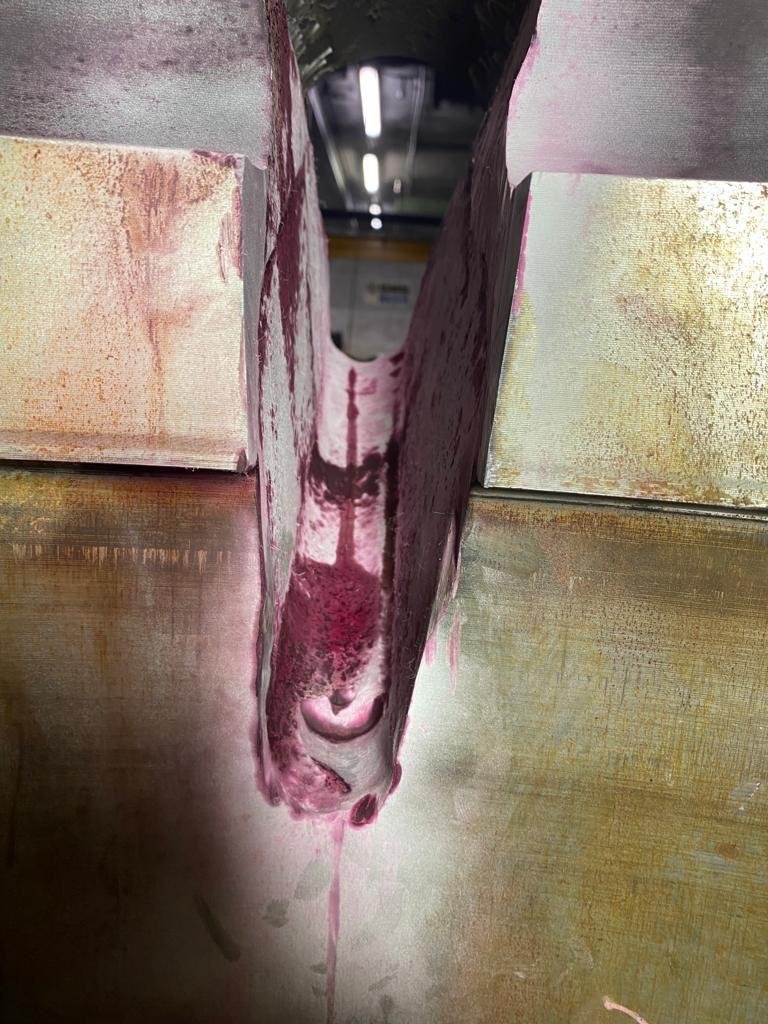

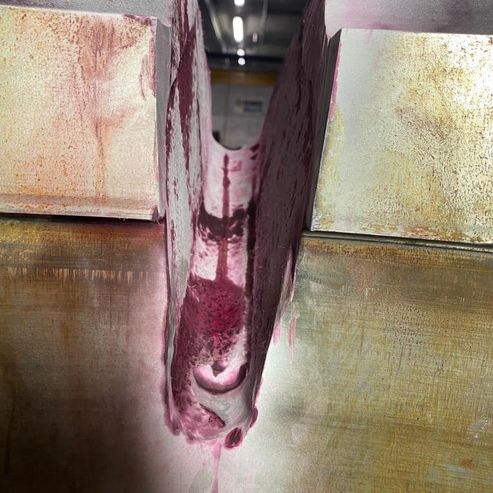

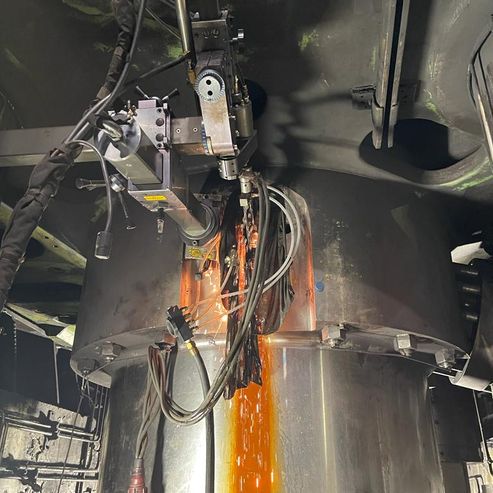

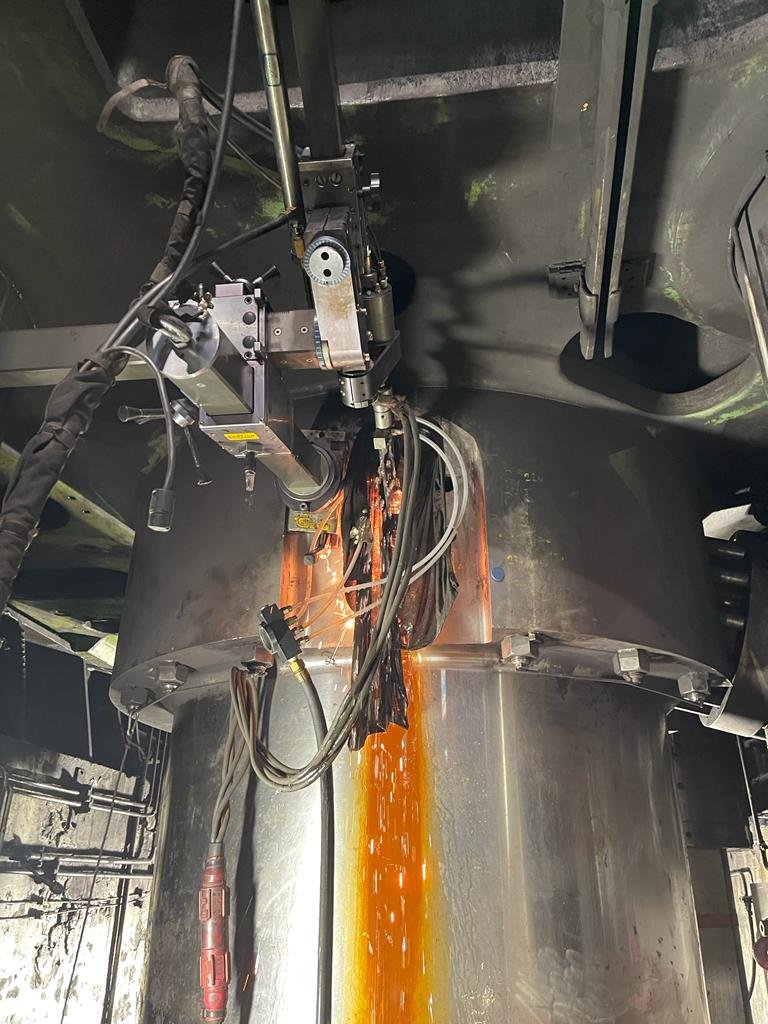

Steel Forge Piston V-Cut

Thickness: 320mm

Length: 400mm

Duration: 24 hours

PHOTO-2022-11-01-18-21-43 2

PHOTO-2022-11-01-18-21-43

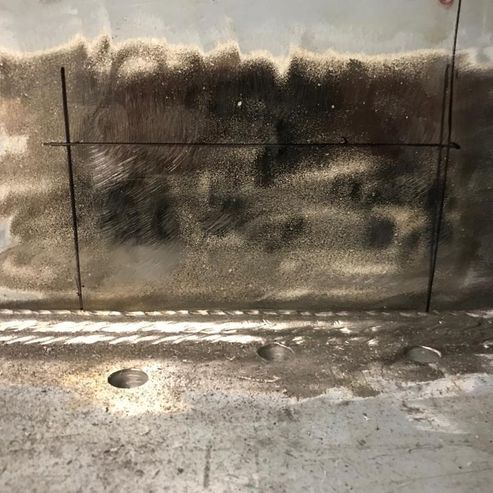

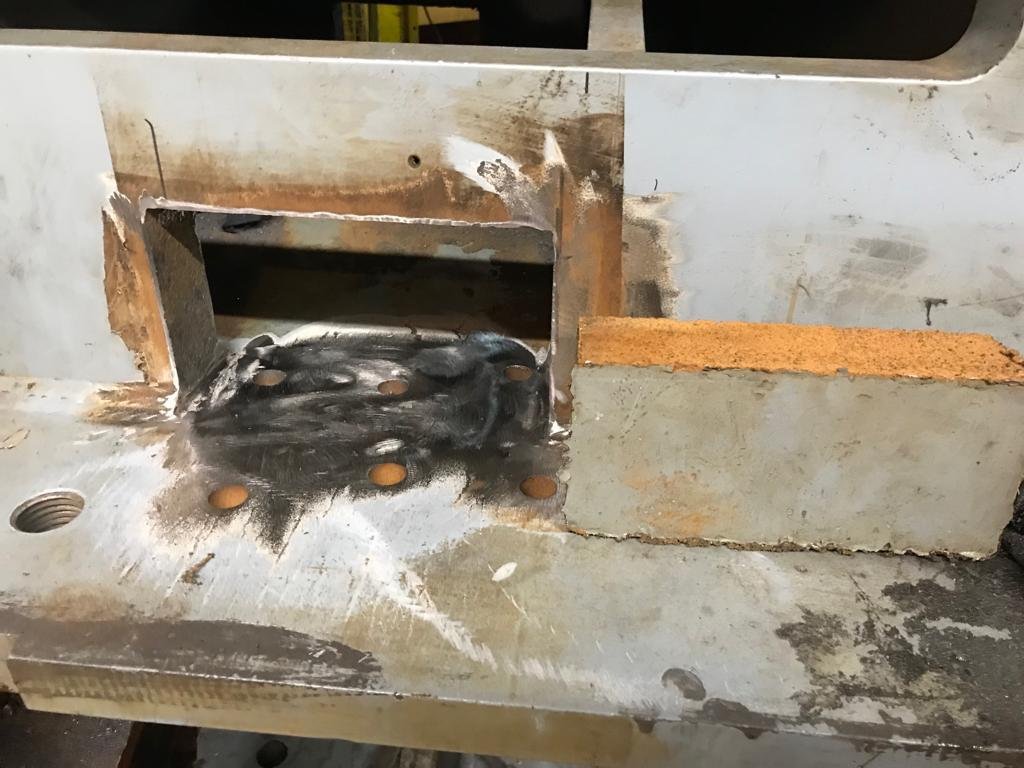

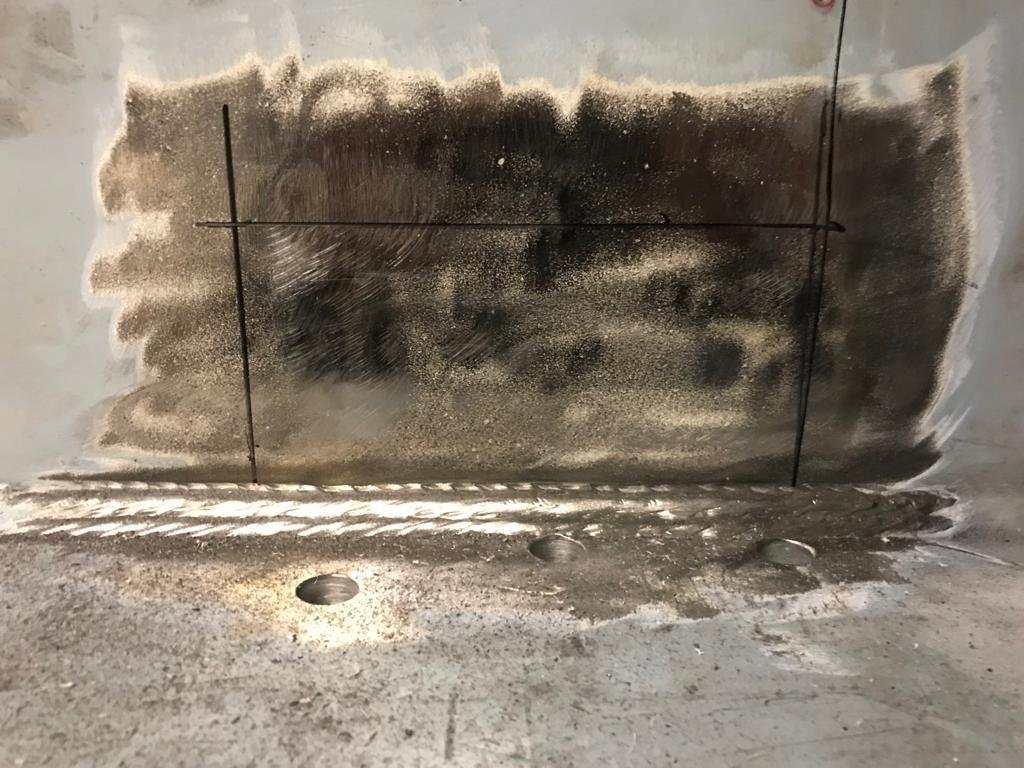

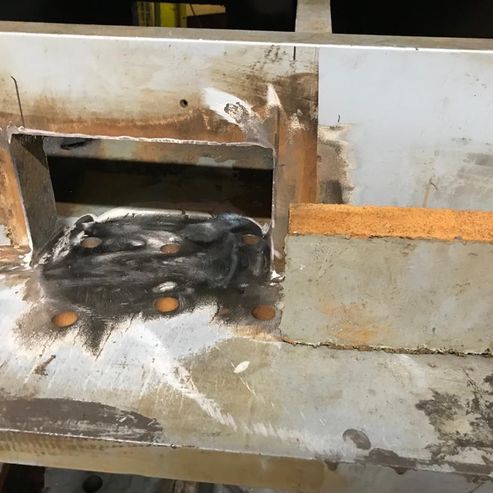

Steel Plate Rectangular Cut

Dimensions: 250mm x 150mm

Thickness: 50mm

Duration: 4 hours

PHOTO-2022-11-01-18-23-04

PHOTO-2022-11-01-18-23-04 2

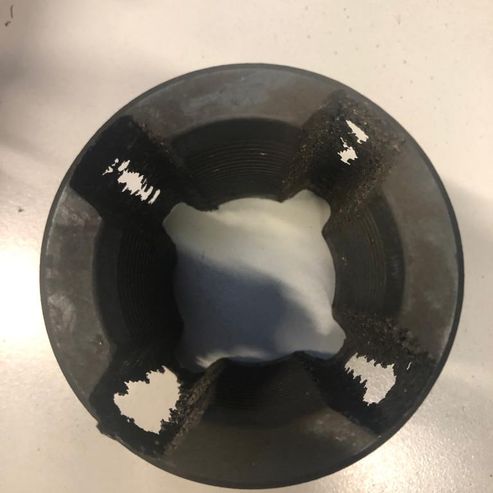

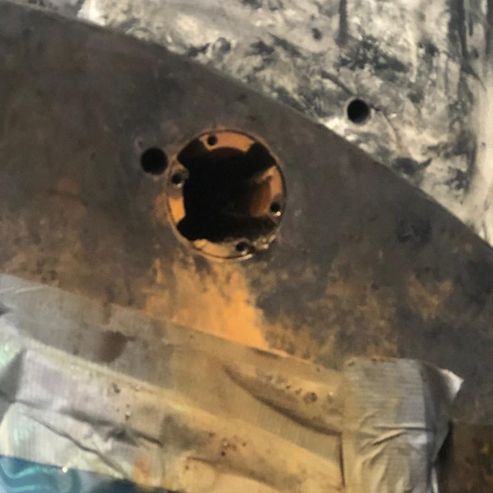

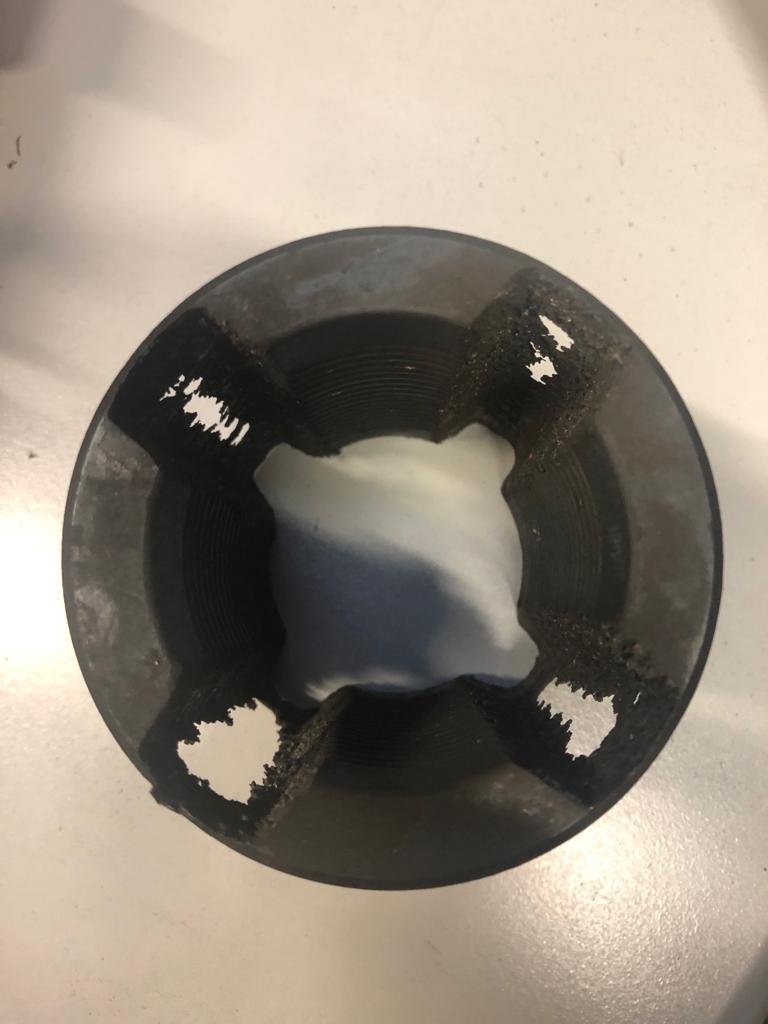

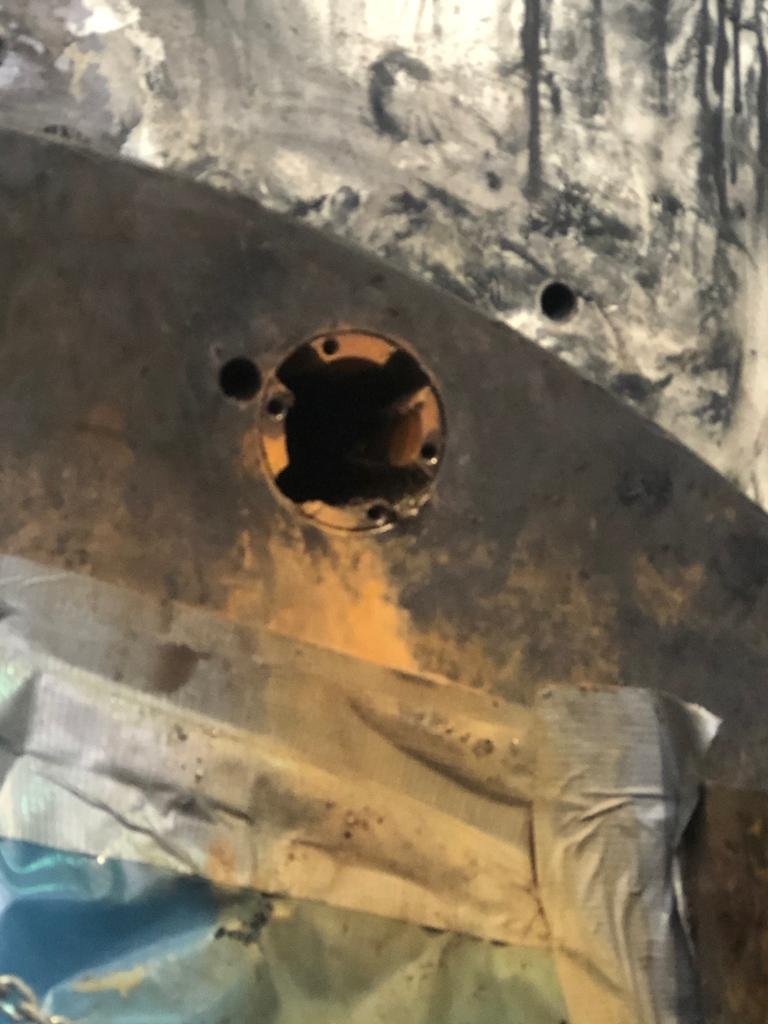

Shaft Sleeve removal with Slitter Electrodes

Bush removal with special Slitter/Cross Electrode

PHOTO-2022-11-01-18-23-22

PHOTO-2022-11-01-18-23-22 2

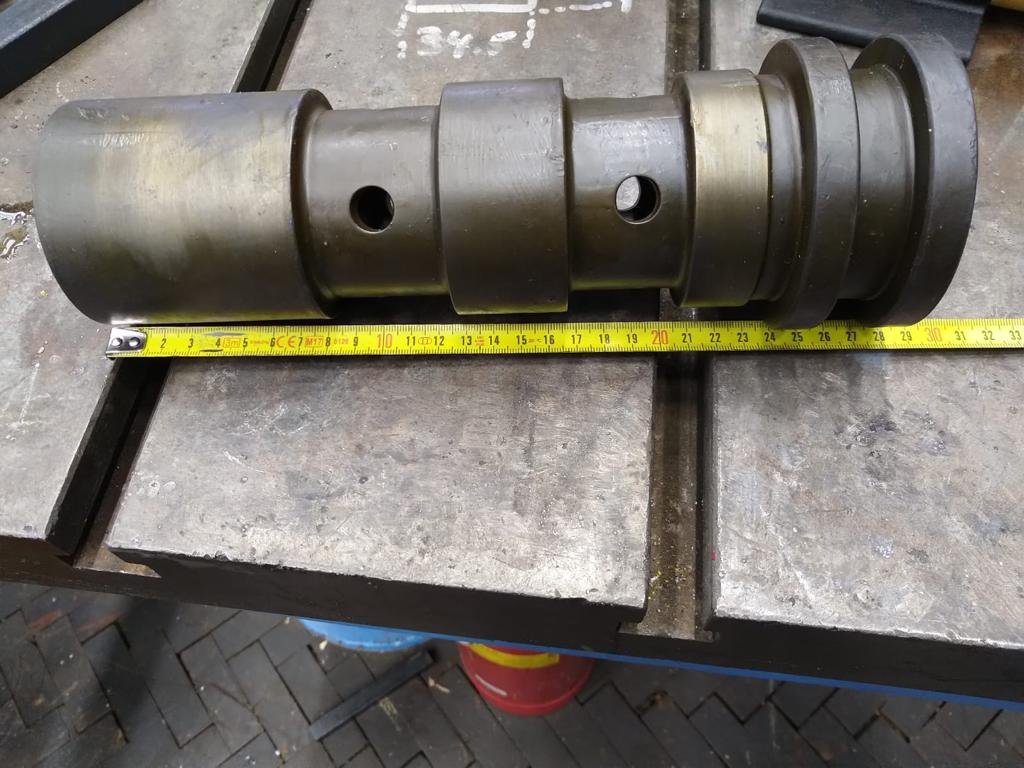

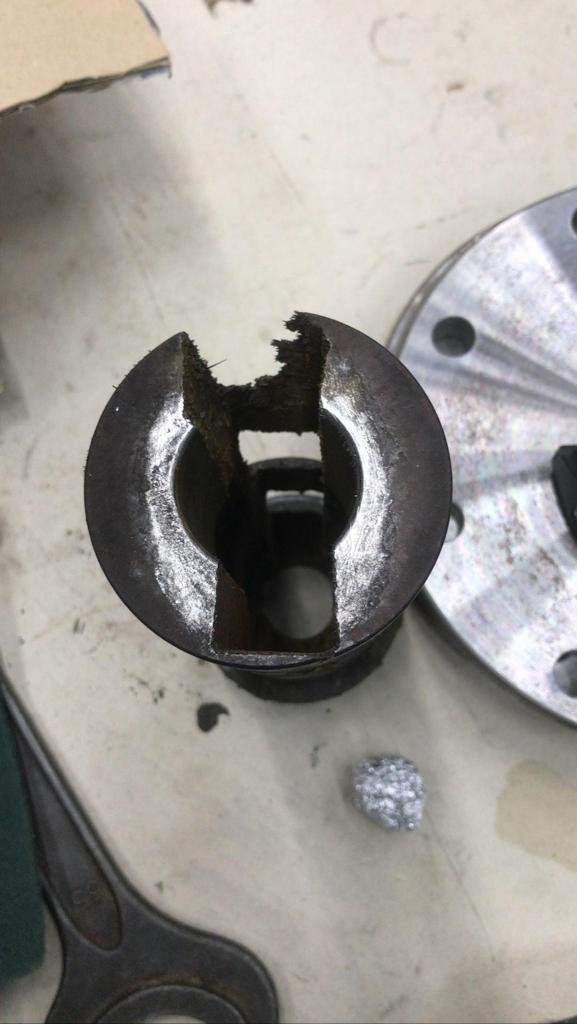

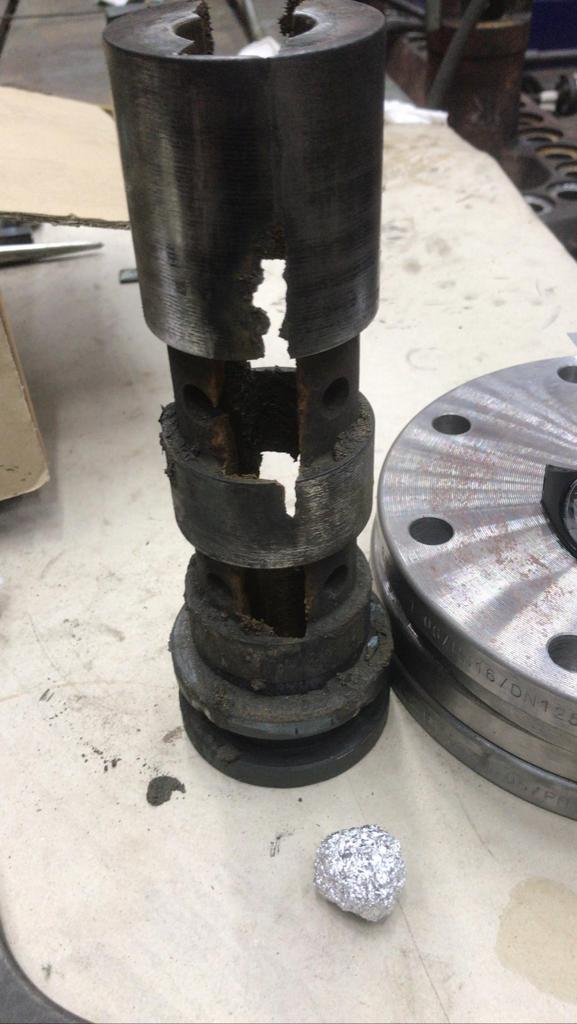

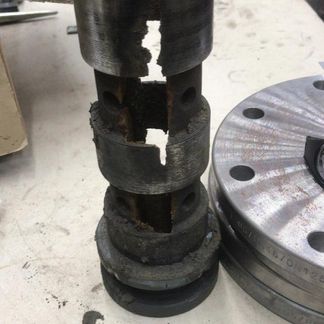

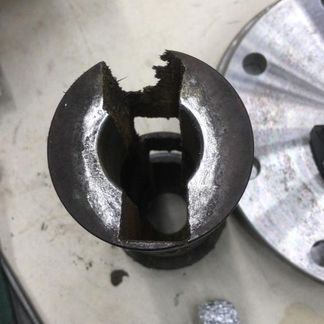

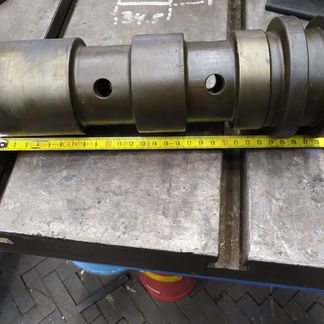

Shaft Sleeve 2 Axial Cuts

Length: 300mm

Duration: 8 hours

PHOTO-2022-11-01-18-23-46

PHOTO-2022-11-01-18-23-46 3

PHOTO-2022-11-01-18-23-46 2

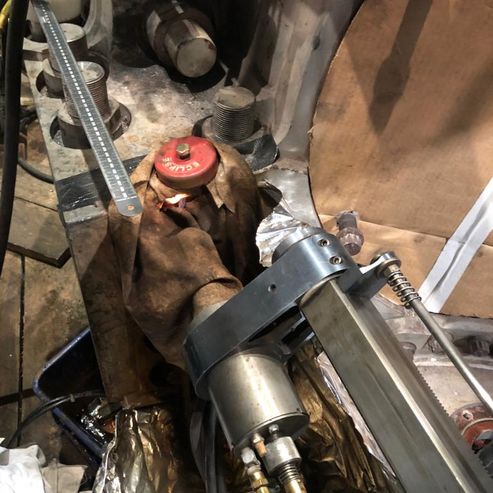

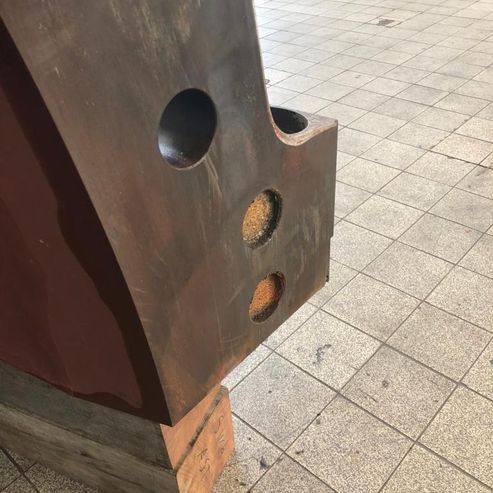

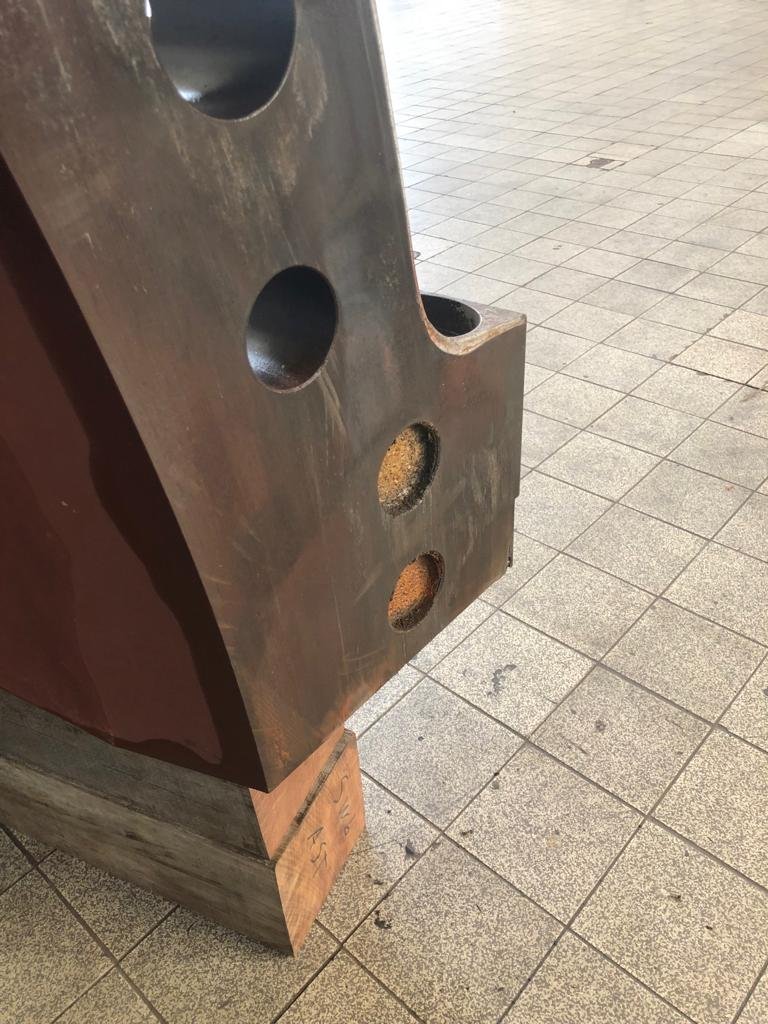

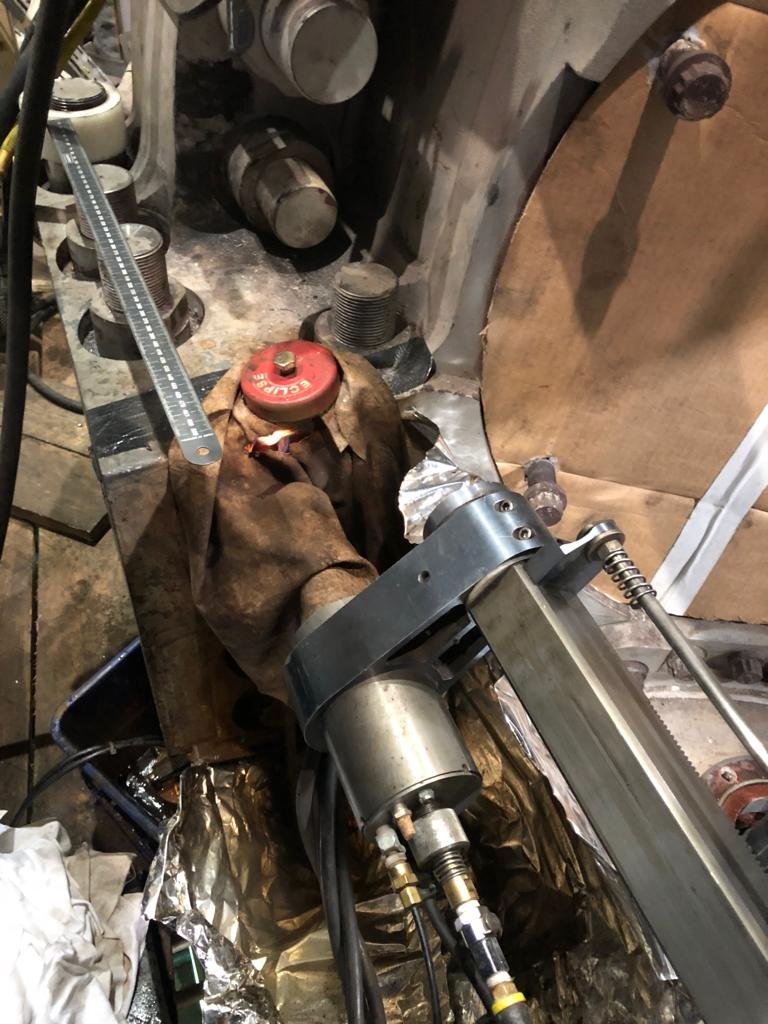

Turbine Casing Bolt Removal

Diameter: 2"1/2' (63mm)

Length: 480mm

Thread: 8UN

Duration: 8 hours

PHOTO-2022-11-01-18-24-39

PHOTO-2022-11-01-18-24-39 2

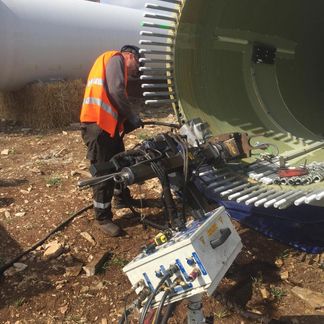

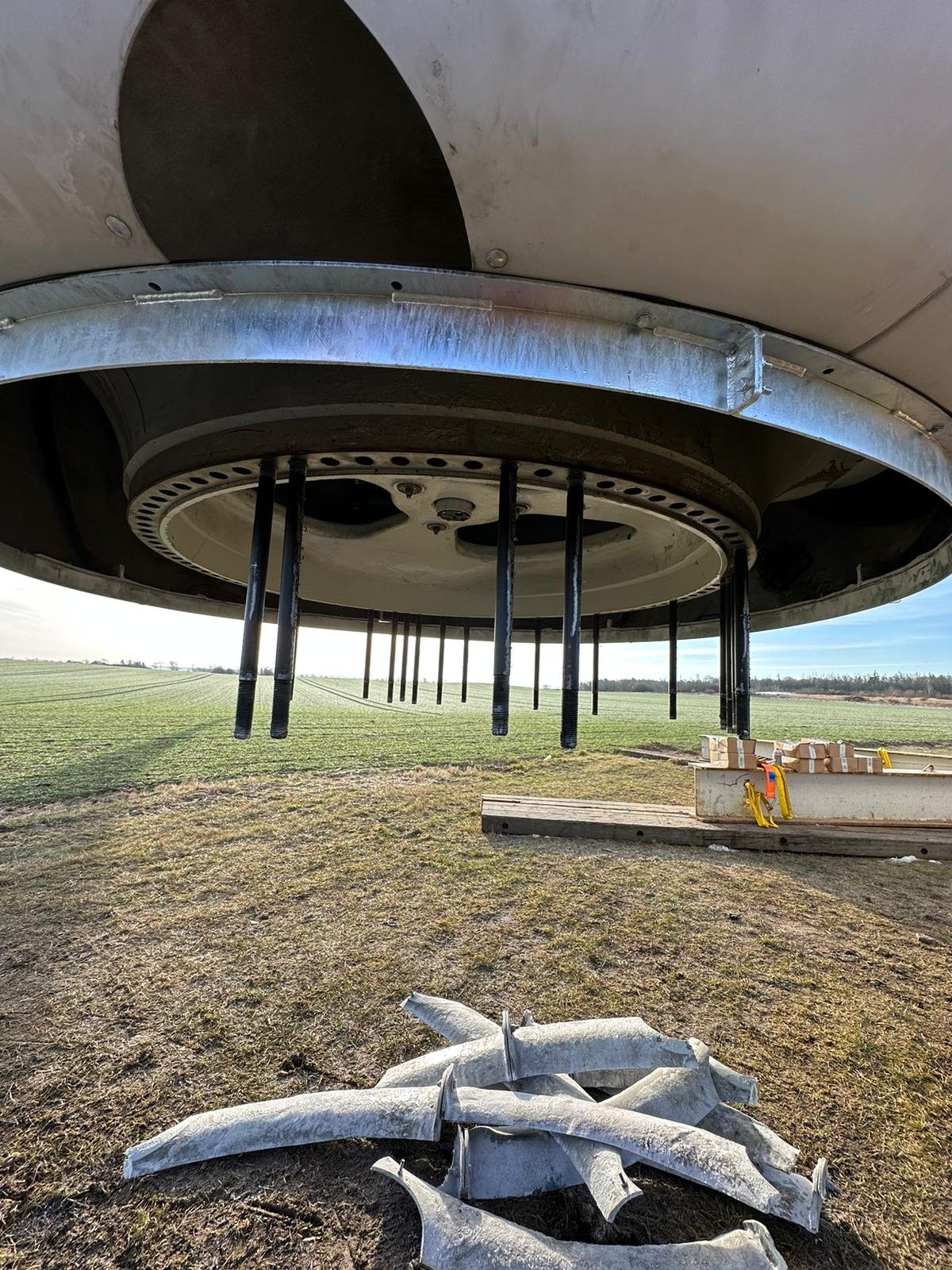

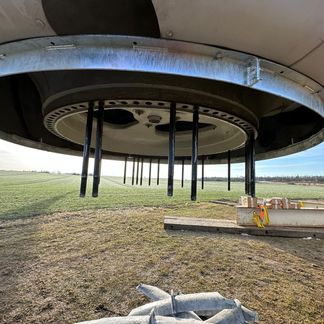

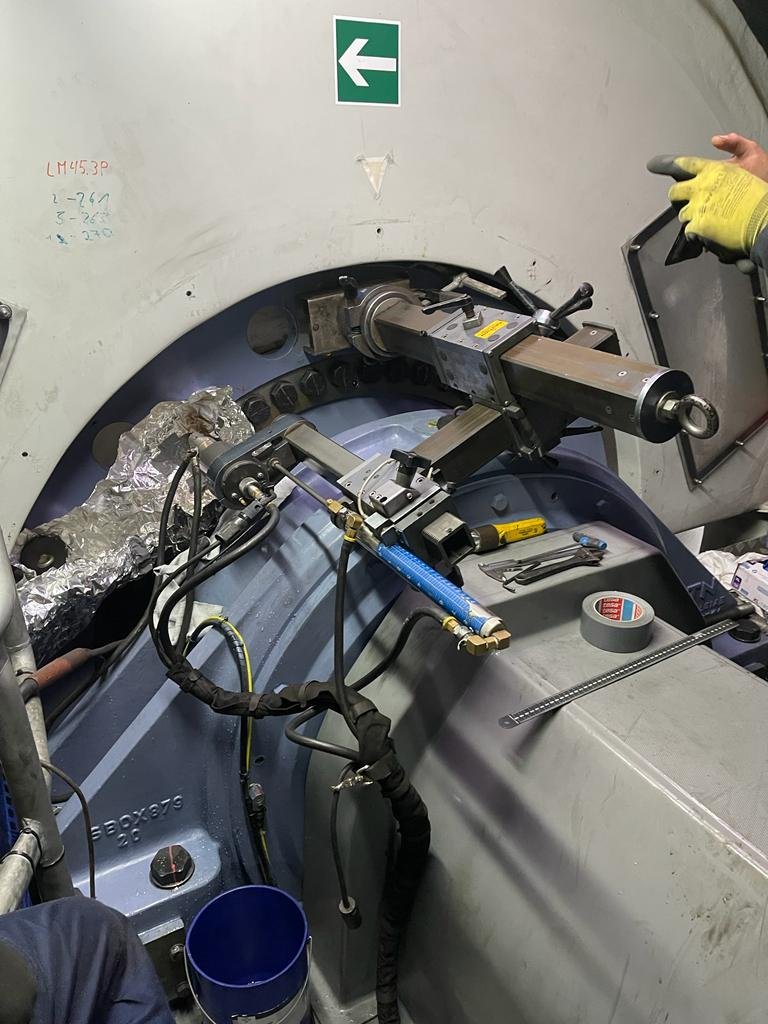

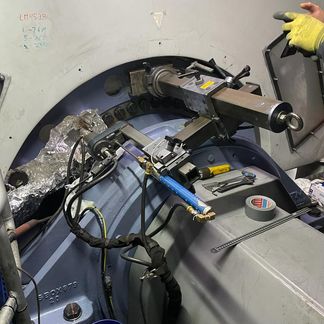

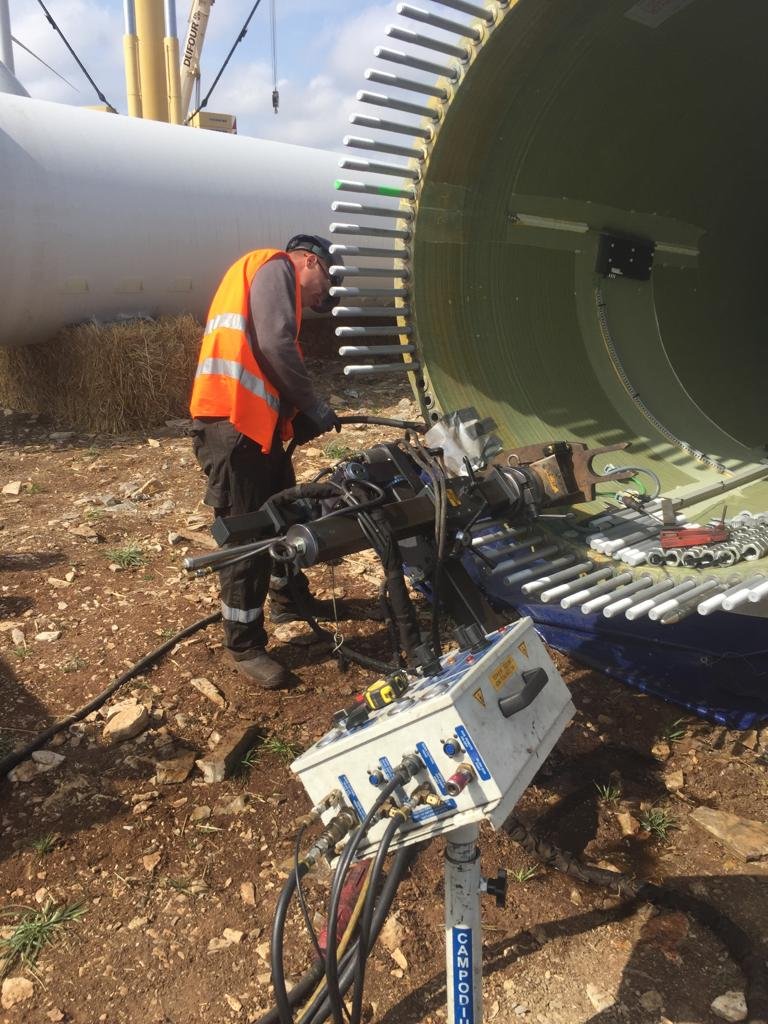

Windturbine Maintenance

Seized or broken stud removal using Square Cuts

PHOTO-2022-11-01-18-24-52

8d4b21e1-8535-47a0-b4ed-c3c592ecce19 (002)

PHOTO-2023-03-01-12-38-56

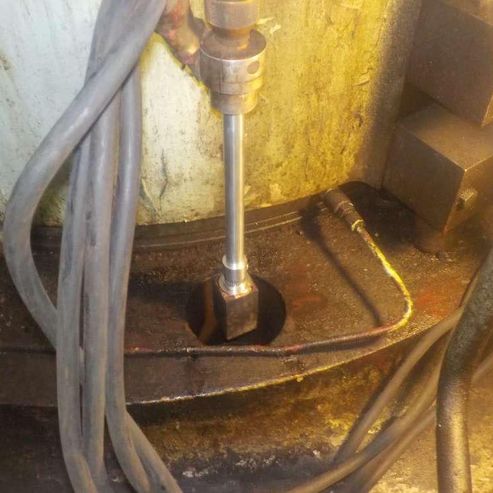

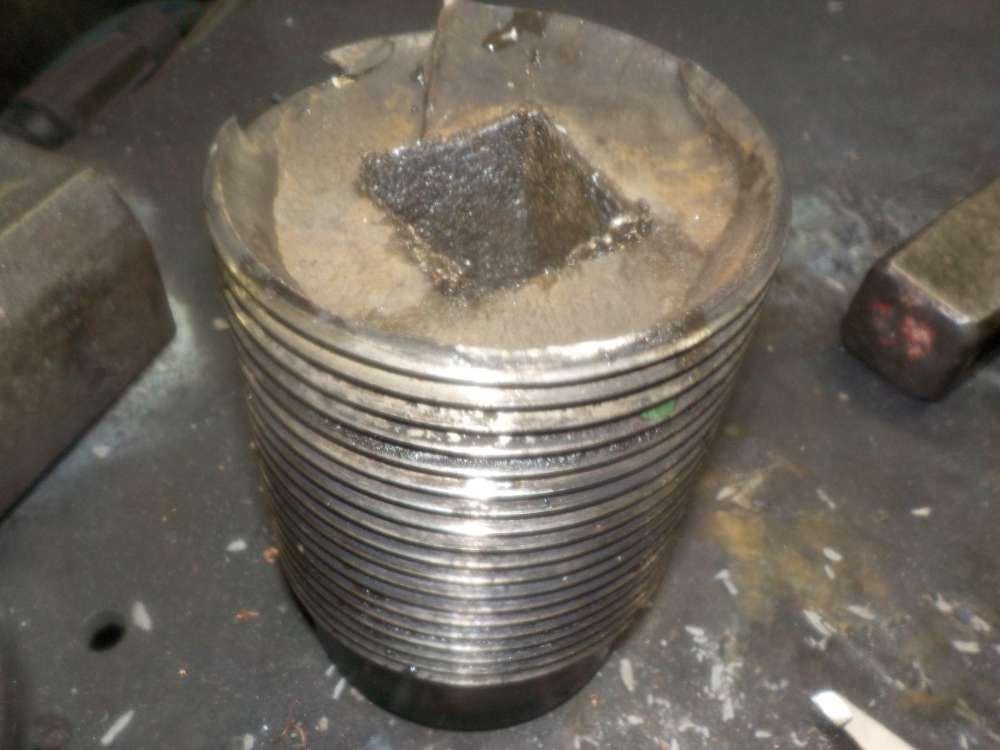

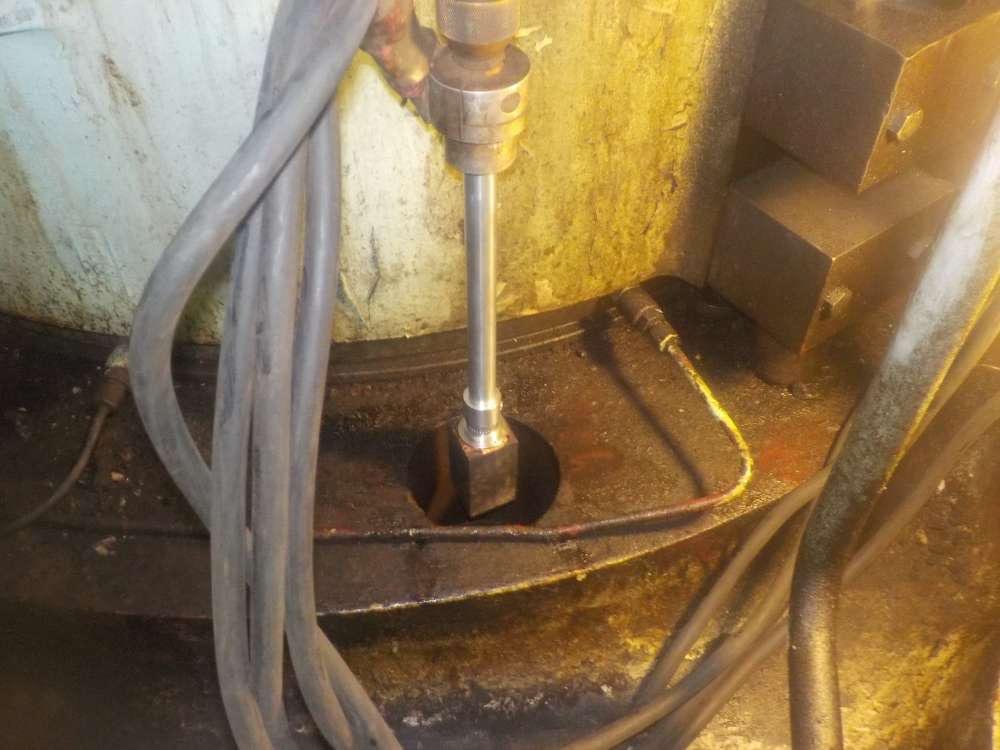

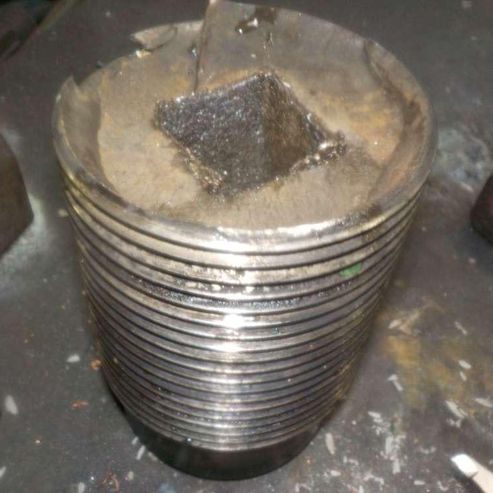

Vessel Engine Cilinder Head Bolt removal

Removal of broken cylinder head bolt of main vessel engine

PHOTO-2022-11-01-18-26-38 2

PHOTO-2022-11-01-18-26-38
